ENGINE, 6.6L V8 WITH DIRECT INJECTION AND VARIABLE VALVE TIMING, GASOLINE

• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

• WHEELS 18 (45.7 CM) PAINTED STEEL (STD)
• POWER OUTLET INTERIOR 120-VOLT (400 watts shared with (KC9) bed mounted power outlet)
• PICKUP BED DELETE includes capped fuel fill (SFW) Back-up alarm calibration (9J4) rear bumper delete (9L3) spare tire delete and spare tire carrier delete.
• REAR AXLE 3.73 RATIO (STD)
• SKID PLATES protect the oil pan front axle and transfer case
• WT CONVENIENCE PACKAGE includes (QT5) EZ Lift power lock and release tailgate (AKO) tinted windows (C49) rear-window defogger (K34) cruise control (DBG) power trailer mirrors with heated upper glass and manual extending/folding
• SNOW PLOW PREP/CAMPER PACKAGE includes (KW5) 220-amp alternator includes increased front GAWR on Heavy Duty models (NZZ) skid plates (transfer case and oil pan) pass through dash grommet hole and roof emergency light provisions.
• DEFOGGER REAR-WINDOW ELECTRIC
• NOT EQUIPPED WITH USB PORTS REAR SEE DEALER FOR DETAILS (Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear.)
• GVWR 11 700 LBS. (5307 KG) WITH SINGLE REAR WHEELS (STD)
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7 DIAGONAL HD COLOR TOUCHSCREEN AM/FM STEREO Bluetooth® audio streaming for 2 active devices voice command pass-through to phone Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS lower convex mirrors turn signal indicators puddle lamps perimeter lighting auxiliary lighting power folding/manual extending (extends 3.31 [84.25mm]) Includes (DD8) auto-dimming rearview mirror.
• TRANSMISSION ALLISON 10-SPEED AUTOMATIC (STD)
• JET BLACK CLOTH SEAT TRIM
• BLACK
• STEERING COLUMN TILT-WHEEL MANUAL with wheel locking security feature (Beginning February 27 2023 through June 4 2023 certain vehicles will be forced to include (N37) manual tilt/telescoping steering column that will remove the (N33) Tilt-Wheel manual steering column. Does not include later dealer retrofit. See dealer for details or the window label for the features on a specific vehicle.)
• BUMPER FRONT CHROME
• REAR CAMERA KIT Kit includes camera fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com
• SEATS FRONT 40/20/40 SPLIT-BENCH with covered armrest storage and under-seat storage (lockable) (STD)
• GLASS DEEP-TINTED
• UPFITTER SWITCH KIT (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.
• TRAILER BRAKE CONTROLLER INTEGRATED
• SPARE TIRE DELETE
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• LAMPS SMOKED AMBER ROOF MARKER (LED)
• BUMPER REAR DELETE
• CRUISE CONTROL ELECTRONIC with set and resume speed steering wheel-mounted
• USB PORTS REAR DUAL CHARGE-ONLY Beginning with the start of production certain vehicles will be forced to include (RFO) Not Equipped with USB ports rear.)
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• LICENSE PLATE KIT FRONT (will be shipped to orders with ship-to states that require front license plate)
• TIRES LT275/70R18E ALL-TERRAIN BLACKWALL (STD)
• SIRIUSXM RADIO enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
• BATTERY AUXILIARY 700 COLD-CRANKING AMPS/70 AMP-HR
• ALTERNATOR 220 AMPS
• SINGLE REAR WHEELS (STD)
• ENGINE 6.6L V8 WITH DIRECT INJECTION AND VARIABLE VALVE TIMING GASOLINE (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)
• Tow Hitch
• Keyless Start
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Daytime Running Lights
• Automatic Highbeams
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Bluetooth® Connection
• Smart Device Integration
• WiFi Hotspot
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Power Outlet
• MP3 Capability
• Auxiliary Audio Input
• A/C
• Front Collision Mitigation
• Front Collision Warning
• Front Collision Mitigation
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Lane Departure Warning
• Front Collision Warning
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 7250
• Curb Weight - Front (lbs): 4200
• Curb Weight - Rear (lbs): 2860
• Gross Vehicle Weight Rating Cap (lbs): 11700
• Gross Combined Wt Rating (lbs): 26000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18230
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4558
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: - TBD -
• Suspension Type - Rear: - TBD -
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QF6
• Rear Tire Order Code: QF6
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/70R18
• Rear Tire Size: LT275/70R18
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 57.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 172
• Length, Overall (in): 266.06
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 80.67
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 11.14
• Ground Clearance, Rear (in): 11.14
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.54
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

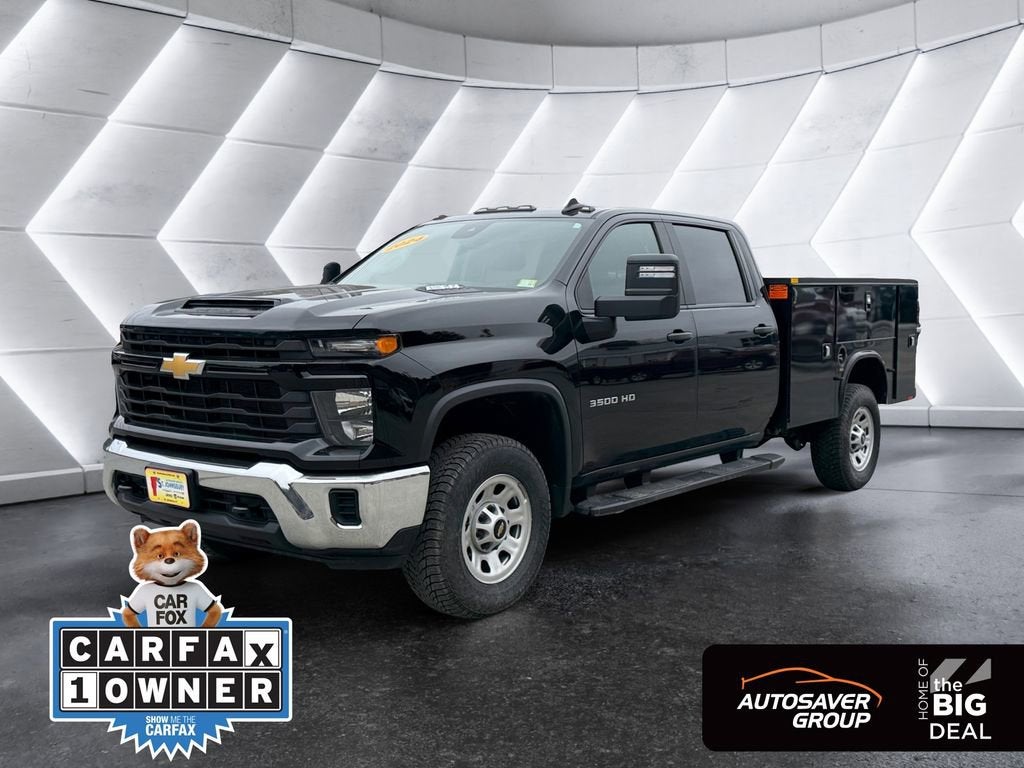

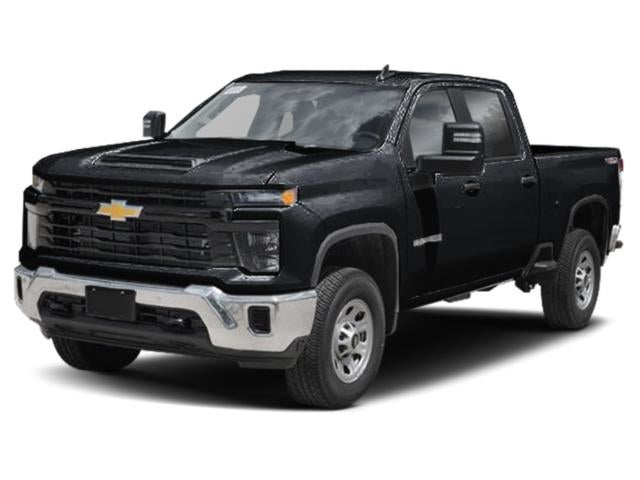

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
